PRODUCT PARAMETERS
Data parameters are helpful to know more about the equipment

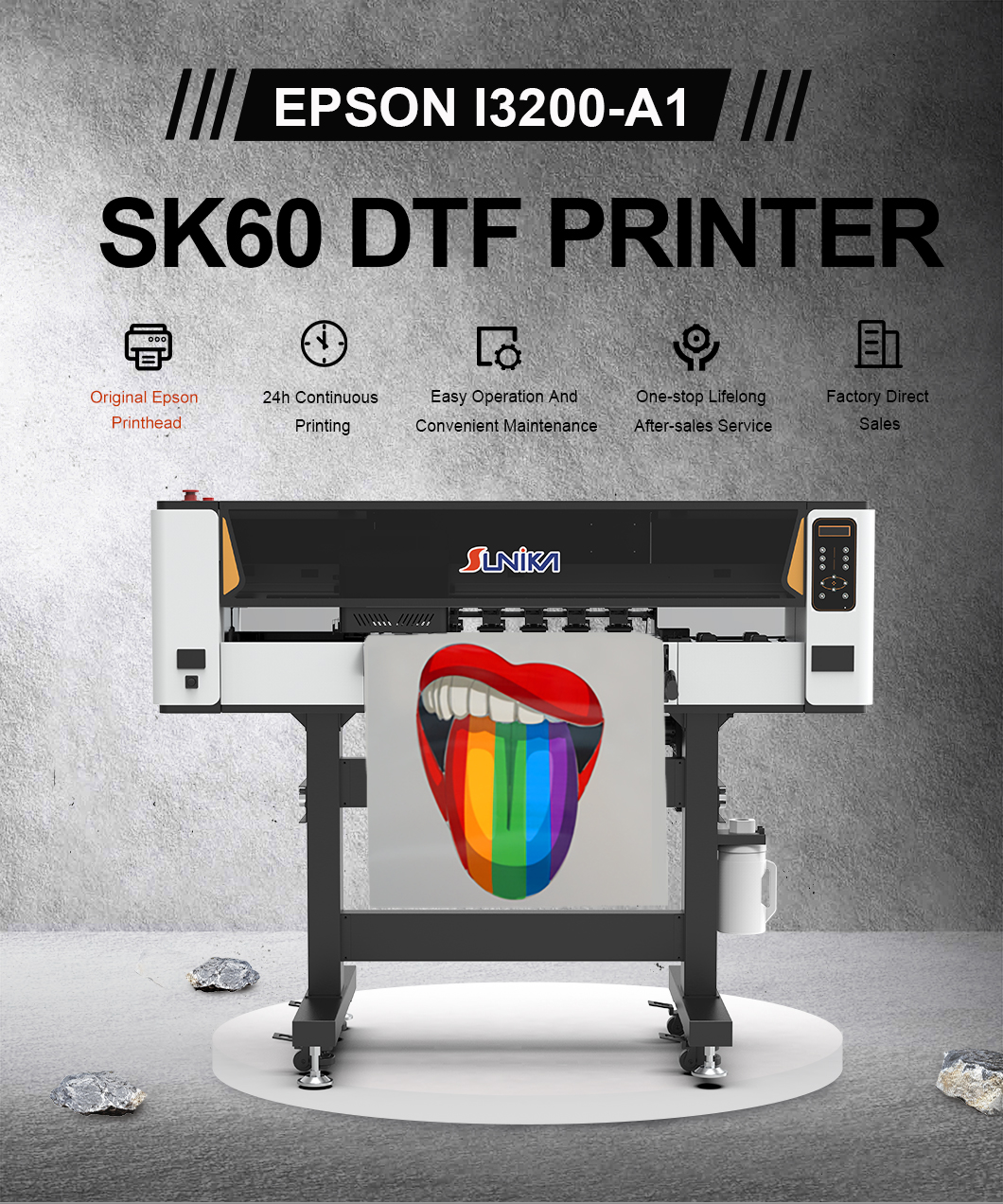

| Model | SK60 |
| Printhead | Type: EPSON I3200-A1 Quantity: 2 |
| Print Width | 600mm |
| Print Speed | 6PASS 8m²/h 8PASS 6m²/h |
| Ink Type | Pigment Ink |
| Print Color | CMYK+W |
| RIP Software | Riin (Standard); Maintop, FlexiPRINT (Optional) |
| Interface | Gigabit port |
| Print Media | PET Film |
| lmage Format | JPG, TIF, PDF, etc. |
| Power | 1000W, 220V/110V, 50Hz/60Hz, 10A |
| System Configuration |
WIN7/WIN10, HARD DISK: 500G or more GPU: ATI Discrete GPU Memory: 8G or more CPU: Intel i5 ProcessdHumidity: 35%～65% |
| Working Environment | Temp.: 18℃~30℃ |
| Printer Size | 1710*800*1380mm |
| Package Size | 1800*980*740mm |
| Package Weight | 210kg |
| Powder Shaker Size | 800*860*850mm |
| Package Size | 880*930*920mm |
| Weight | N.W: 80kg G.W.: 95kg |
PRODUCT DETAILS PRESENTATION
Strict control of details, quality assured
Double printheads design
Equipped with double13200-Al printheads, faster printing.

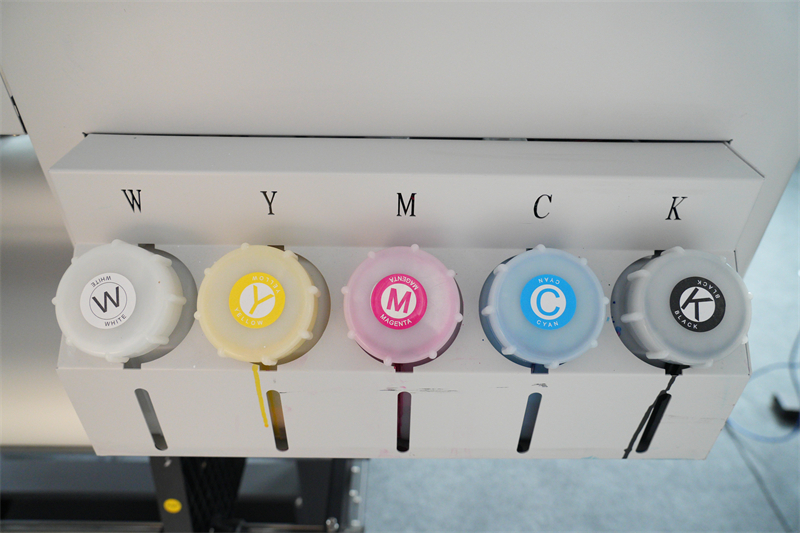

White ink automatic mixing/circulation
Anti-clogging and anti-precipitation,moreuniform ink output.
Automatic airsuction system
Three-section heating designmore stable printing, and the film runs smoother.
