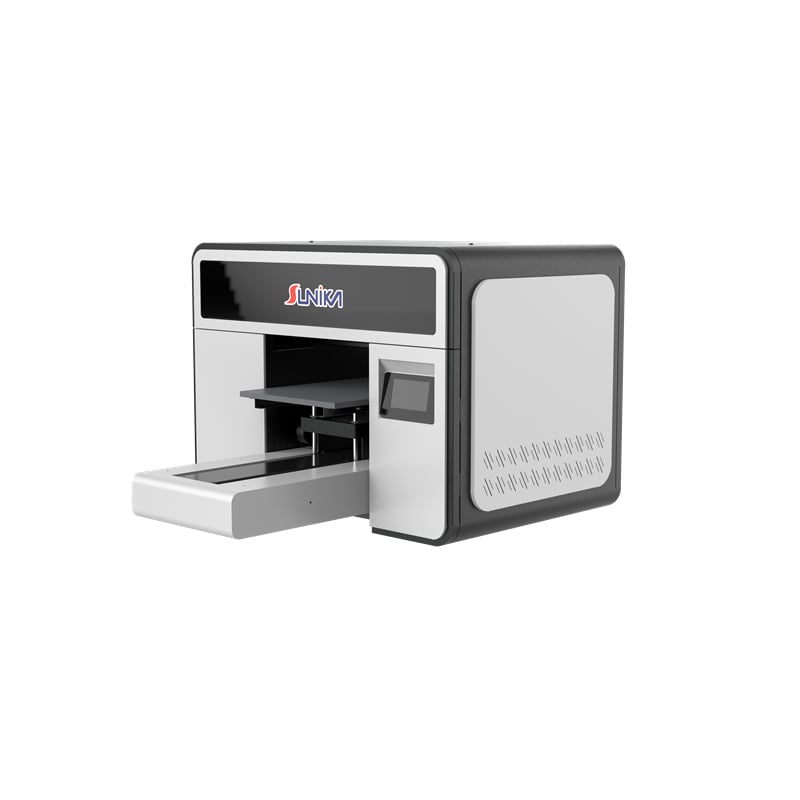

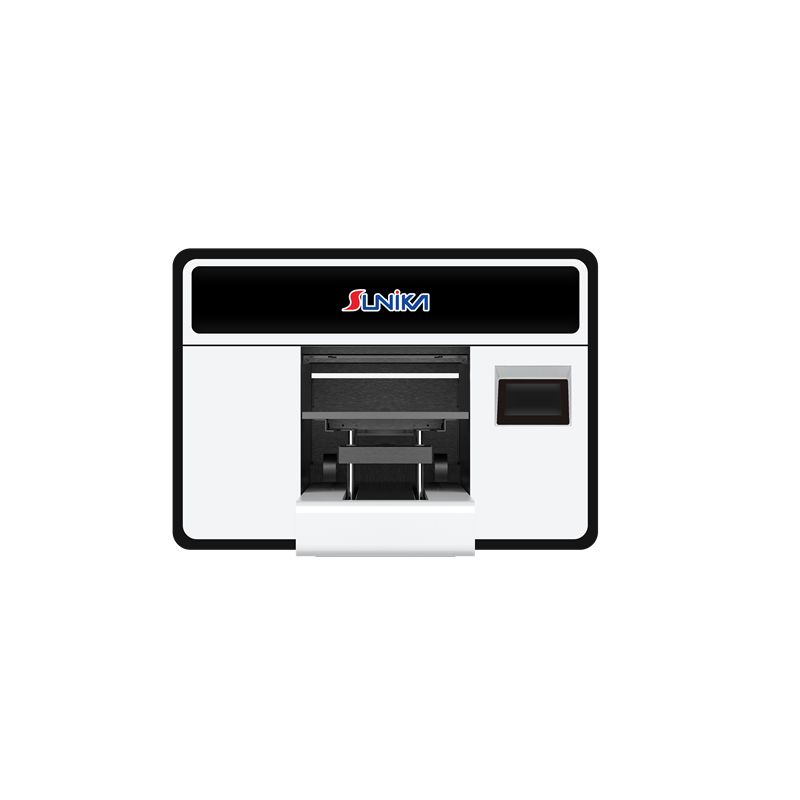

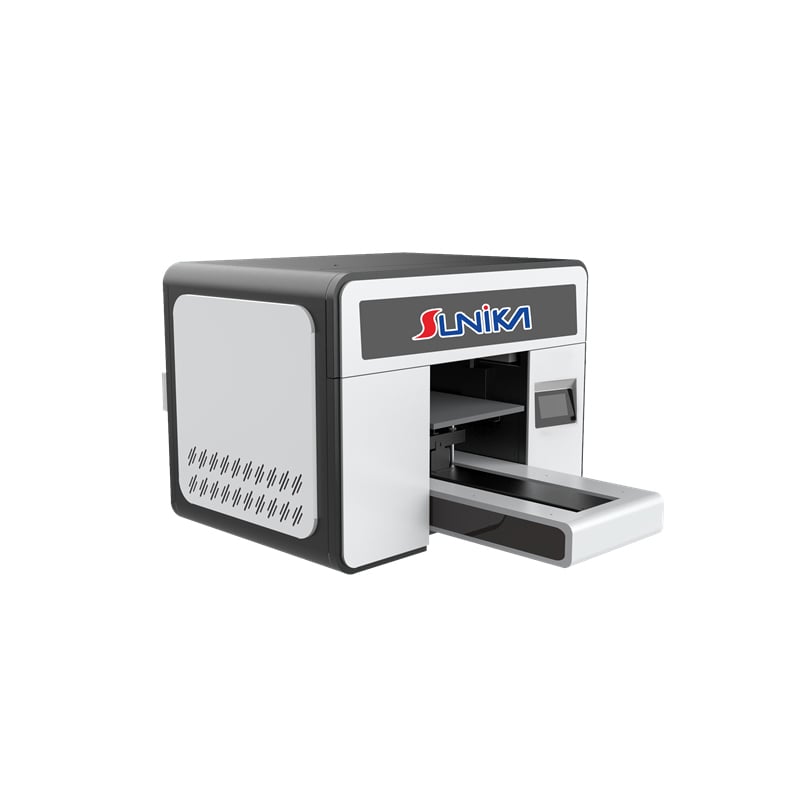

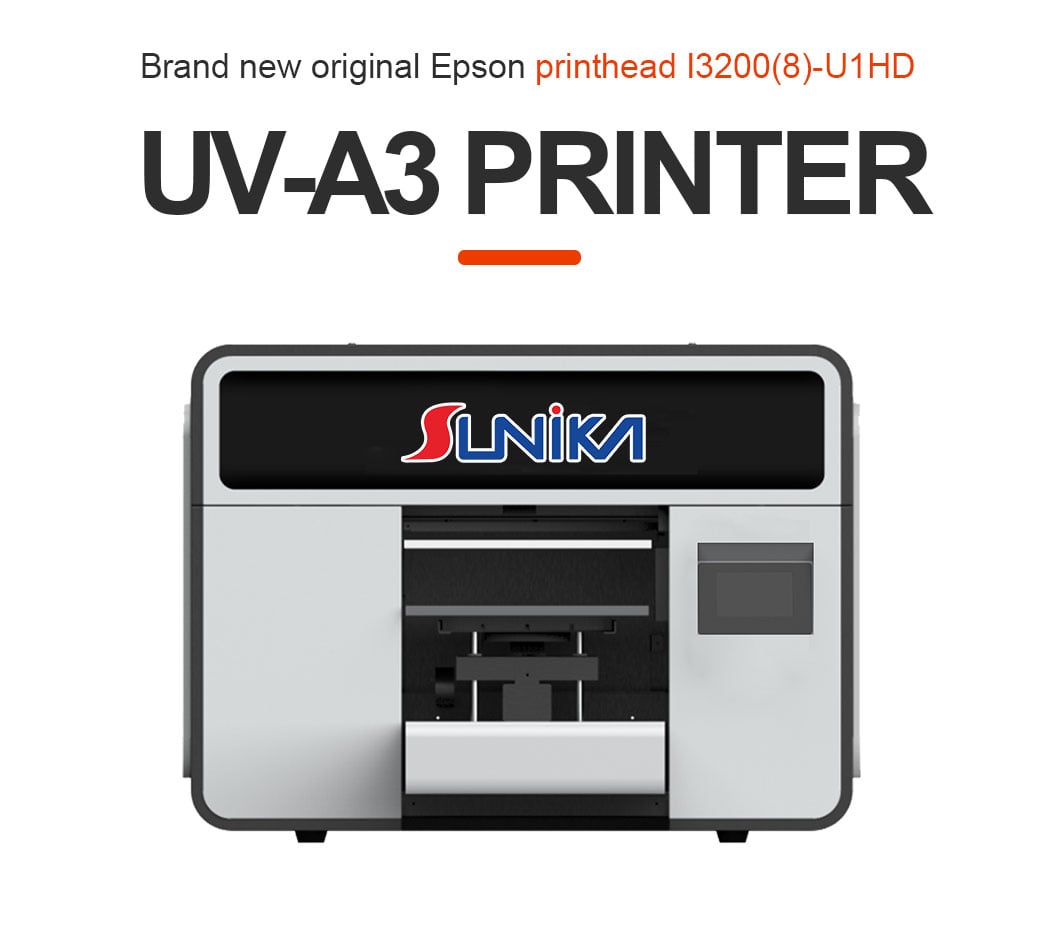

Sunika Sk-A3UV Printer Single I3200 UV Flatbed Printer

Overview

Data parameters are helpful to know more about the equipment

Model	SK-A3UV
Printhead	Epson 13200(8)-UI HD printhead
Printhead qty.	1pc
Printing speed	0.28m²/h~3m²/h
Printing width	Flatbed:420L297W mm RTR:150290mm(DiameterW) Cylinder:30-90230mm(Diameter*W)
Material thickness	1mm~98mm
Ink type	Environmental friendly UV curable ink

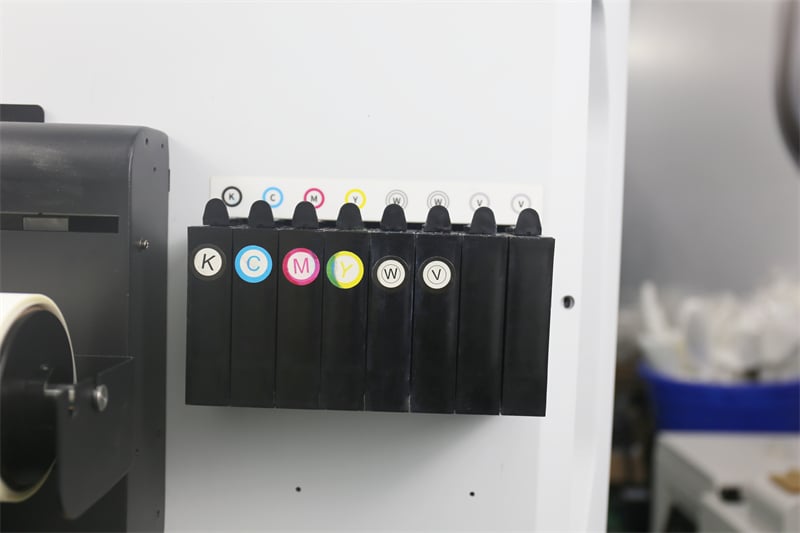

Ink color	Standard:CMYK+W+V Optional:YMCKLcLm+W
RIP software	Riin (Standard);Maintop,FlexiPRINT (Optional)
Printing material	Wood,Stone,Metal,Glass,Acrylic,Paper,Plastic, Leather etc.hard surface material
Picture format	TIFF,JPEG,PDF,EPS,PNG,AI,BMP,etc.
Computer disposition	Win10,64 bit,Interface:Gigabit port,Hard disk 500G or above
Rated voltage/power	110-220V 50Hz/60Hz/500W
Work environment	Temp.:15℃~30℃,Humidity:35%-65%RH

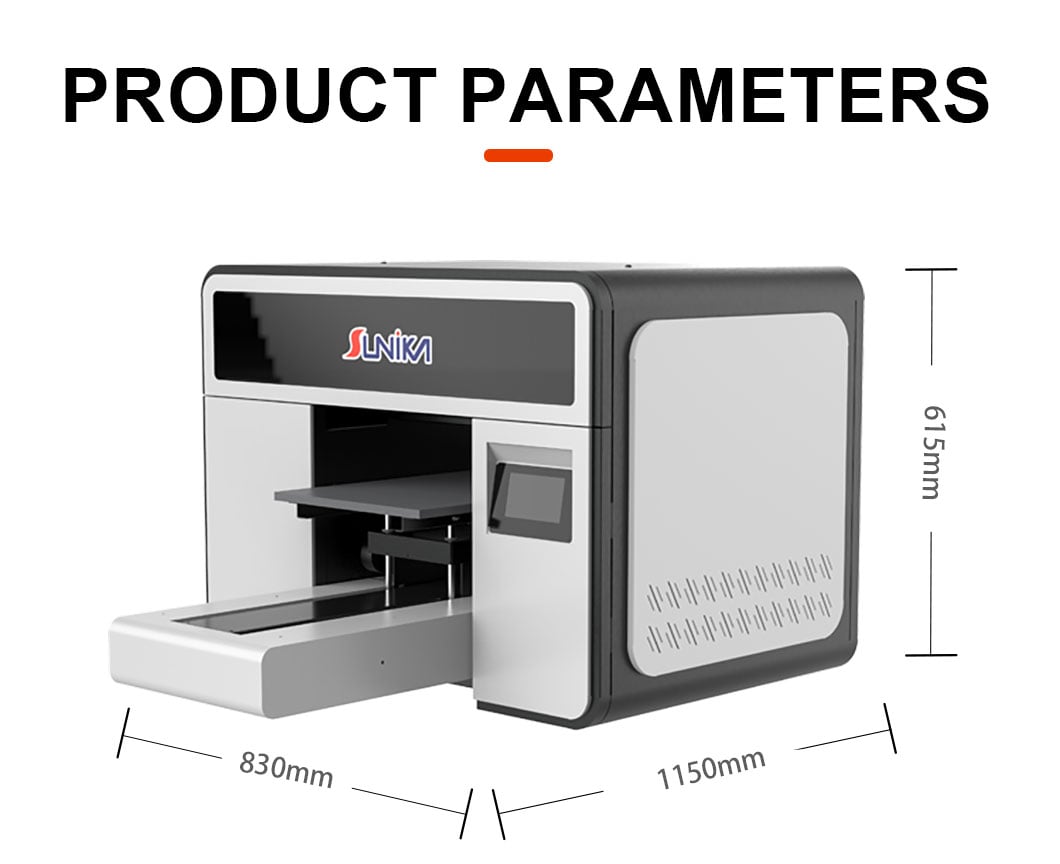

Printer size	830L1150W615H(mm)
Weight	N.W.:80kg G.W.:124kg

Strict control of details, quality assured

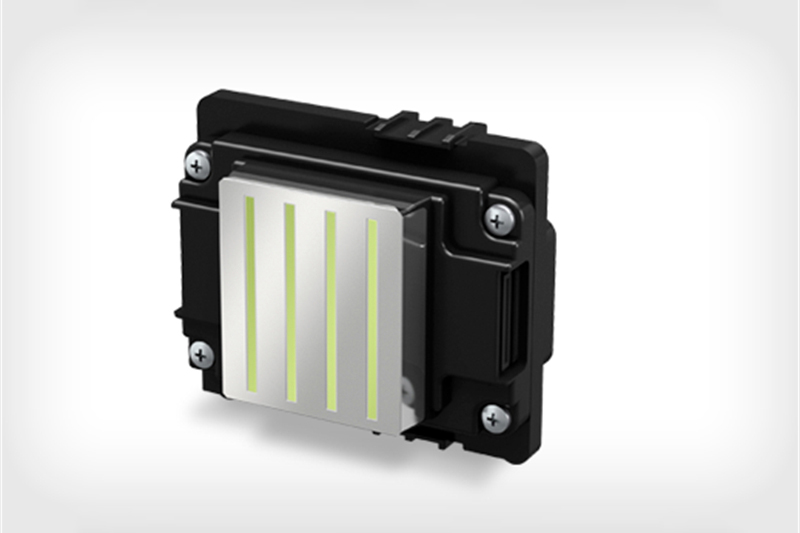

13200 (8)-U1HD printheads have long service life


The machine runs more smoothly with less noise.

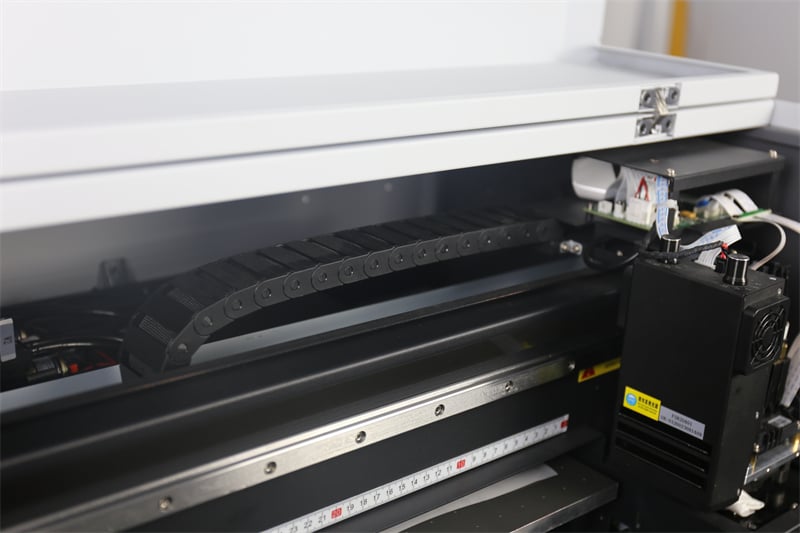

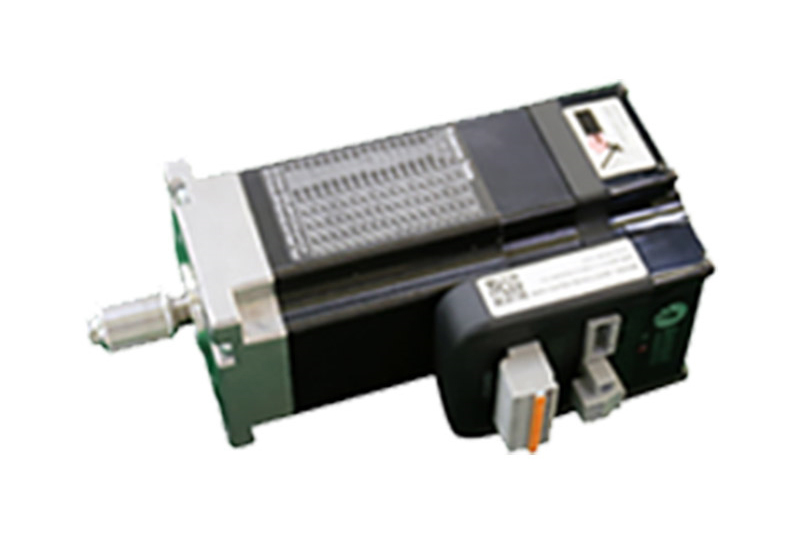

High-precision drive linear decoding ensures smaller length error and stable running.


Supports one-time printing of white varnish,easily achieving high-quality printing images.
